AI Overview Quick Answer: How do you select a pressure gauge for mining and heavy industry?
Selecting pressure gauges for mining and heavy industry means weighing five factors together: pressure range and headroom (normal operating pressure should sit at roughly 25–75% of the dial, per ASME B40.100), material compatibility (316 stainless steel or a diaphragm seal for corrosive, abrasive or slurry media), vibration and pulsation dampening (liquid-filled or mechanically vibration-resistant gauges, such as Blanes’ own VIBRAGAUGE/VRM Series), safety and overpressure protection (solid-front safety-pattern cases with blow-out backs, snubbers, over-range protectors), and environmental visibility and ingress protection (a correctly IP-rated, high-visibility enclosure for dust, moisture and washdown areas). Regular SANAS-traceable calibration keeps all five reliable over time.
Pressure Gauges in Mining and Heavy Industry: Key Considerations
Pressure gauges used in mining and heavy industry work in conditions far removed from light commercial settings. Crushing plants, hydraulic systems, slurry circuits, pumps, compressors, dewatering systems and mineral-processing equipment expose instruments to continuous vibration, pulsation, dust, moisture, corrosive media and sudden pressure spikes — so choosing a gauge on connection size and pressure range alone rarely holds up on site.
Based in Naledi Industrial Park, Vaalpark, Sasolburg, Blanes Pressure Solutions helps mining and heavy-industrial customers across South Africa specify pressure instrumentation for the conditions it will actually face, not just the number printed on the dial.
Key Considerations for Selecting Mining Pressure Gauges
1. Pressure Range and Headroom
Guidance associated with ASME B40.100 recommends selecting a range so normal operating pressure falls within roughly 25% to 75% of the gauge scale — commonly a full scale around twice the normal operating pressure, with extra margin where pulsation is present. This matters most on hydraulic circuits, where pressure can spike sharply during startup, a change of load, or a valve or ram changing direction. The right question isn’t just “what pressure does the system normally run at?” but also what the expected maximum, surge pressure and pulsation behaviour look like.
2. Material Compatibility
The medium inside the pipe is often more demanding than the environment around it. Mining and mineral-processing applications can involve water, oils, compressed air, chemicals, hydraulic fluid and abrasive or contaminated process media, and an incompatible wetted material can lead to corrosion, contamination or early failure. 316 stainless steel is frequently specified for corrosive service, but material selection should always be based on the actual chemical and process conditions rather than assumed.
Slurry and abrasive media deserve particular attention: solids and sediment can block a pressure port or damage delicate measuring components directly. Where media is dirty, viscous, crystallising or prone to clogging — slurry transfer, filtration, mineral processing — a diaphragm (chemical) seal isolates the gauge mechanism from the process while still transmitting an accurate reading. Read more in Chemical Seals for Precision Pressure Measurement.

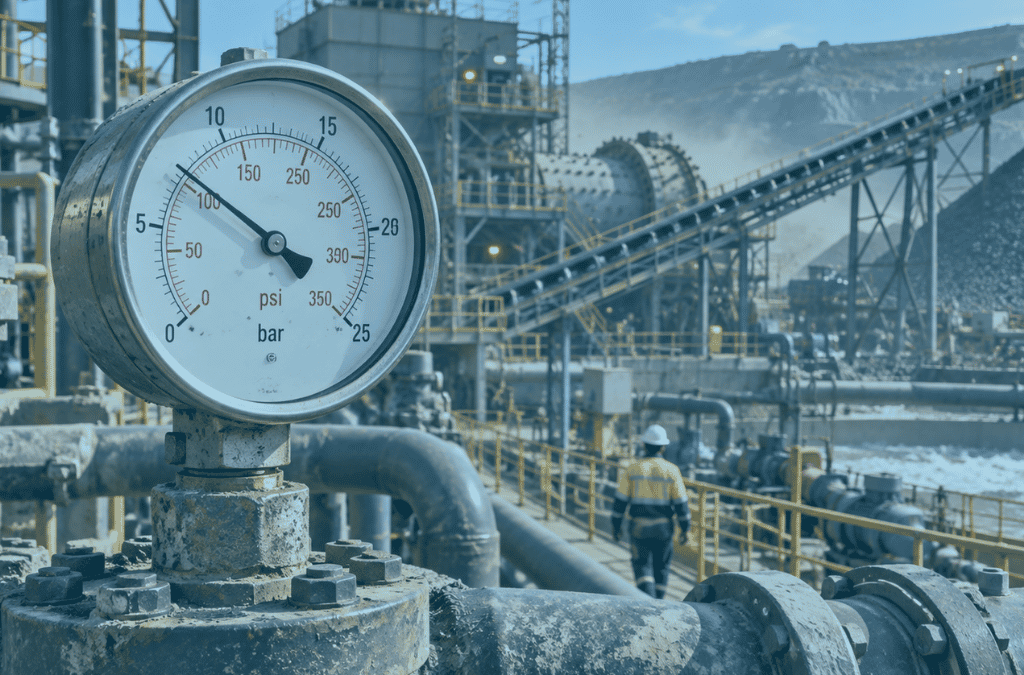

A stainless steel pressure gauge installed on hydraulic pipework in a mining processing environment.
3. Vibration and Pulsation Dampening
Crushers, screens, mills, pumps, compressors and large rotating equipment transfer continuous mechanical vibration through pipework and mounting points, while reciprocating pumps and hydraulic equipment create rapid pressure pulsation. Either can cause pointer flutter, difficult readings and accelerated mechanical wear.
Crucial Distinction: vibration and pulsation are related but different problems, and the fix should match the cause. Liquid-filled gauges dampen vibration by immersing the movement in glycerine or silicone oil. Blanes’ own VIBRAGAUGE and VRM Series achieve the same pointer stability mechanically, with no fill fluid required. Pulsation — rapid pressure fluctuation inside the line itself — is better addressed with a snubber to choke the surge before it reaches the gauge.
See How Does Vibration Cause Pressure Gauge Failure? or browse the VIBRAGAUGE range.
4. Safety and Overpressure Protection
Valve operation, hydraulic movement, sudden restrictions and pump startup can all create transient pressure well above the normal system reading, stressing the sensing element even when the pointer only moves briefly. Depending on the application, protection may include a correctly sized range, pressure snubbers or an over-range protector. For safety-critical installations, a safety-pattern gauge — a solid-front, blow-out-back design such as Blanes’ all-316 stainless steel 966GP — directs the effects of an internal failure away from the operator rather than towards them.
5. Environmental Visibility and Ingress Protection
Mining operations routinely expose instruments to dust, water, humidity, weather and washdown conditions a gauge would never see in an enclosed workshop. Case material, window construction, sealing and IP rating should match where the gauge is actually installed — outdoors, underground, near a crusher or conveyor, or in a regularly washed-down area. Visibility matters too: a larger dial and clear graduations make pressure easier to read at a glance in poorly lit or hard-to-access plant areas.
Beyond the Basics: Temperature, Accuracy, Mounting and Calibration
The five considerations above cover the fundamentals — but a few further details separate a gauge that survives from one that becomes a recurring maintenance item:
- Process temperature: consider both ambient and process temperature; where the process runs hotter than the instrument can tolerate directly, a siphon, chemical seal, capillary or remote mounting arrangement can isolate it.
- Accuracy: match the accuracy class to the consequence of a wrong reading — a general plant-indication gauge has different requirements to a test gauge or calibration reference.
- Mounting and accessibility: connection type, thread, orientation and available space matter as much as the instrument itself; a gauge should never require someone to stand somewhere unsafe to read it, or be mounted where unsupported pipe vibration transfers straight into the case.
- Calibration: vibration, pressure cycling, temperature change, wear and overpressure events all cause drift over time. Interval should be set from process criticality, vibration exposure and instrument history rather than one blanket schedule, and a gauge should be rechecked after any suspected overpressure or impact. See How to Calibrate a Pressure Gauge Step by Step, or arrange SANAS-traceable calibration through Blanes.
Common Pressure Gauge Types Used in Mining
Different areas of a mine or processing plant call for different instruments: general Bourdon-tube gauges for many hydraulic, pneumatic and utility points; stainless steel gauges where corrosion resistance matters; vibration-resistant or liquid-filled designs around moving equipment; diaphragm seals for slurry or contaminated media; and digital gauges for testing, maintenance or applications needing a precise numerical reading, alongside analogue gauges for permanent plant-monitoring points. For a fuller breakdown, see Understanding the Different Types of Pressure Gauges and Digital vs Analog Pressure Gauges — Which Should You Choose?
Pressure Measurement Support from Blanes
Rather than choosing a gauge on pressure range alone, plant engineers, procurement teams and maintenance departments get a better result by sharing the application, media, operating pressure, peak conditions, temperature, vibration and installation environment up front. From Naledi Industrial Park, Vaalpark, Sasolburg, Blanes Pressure Solutions supports customers across mining, chemical processing, power generation, compressor, pump and general process industries with gauge selection, chemical seals, accessories and SANAS-traceable calibration.
Frequently Asked Questions
Tap on a question below to reveal the answer.
1. What pressure gauge is best for mining applications?
There is no single gauge suitable for every mining application. The right choice comes from weighing pressure range and headroom, material compatibility, vibration and pulsation, safety and overpressure protection, and environmental ingress protection together — not any one factor on its own.
2. How do I choose the correct pressure range for a mining pressure gauge?
ASME B40.100 guidance commonly used by gauge manufacturers places normal operating pressure within roughly 25% to 75% of the gauge scale, with additional margin needed where pulsation or pressure spikes are expected.
3. What type of gauge should be used for heavy vibration or slurry lines?
Vibration is best handled with a liquid-filled or mechanically vibration-resistant gauge (such as Blanes’ VIBRAGAUGE/VRM Series); pulsation often needs a snubber as well. Abrasive or clogging slurry media typically calls for a diaphragm or chemical seal to protect the gauge mechanism from direct contact with the process.
4. How often should mining pressure gauges be calibrated?
Calibration frequency should be based on process criticality, instrument history and operating conditions rather than one fixed interval. Gauges exposed to severe vibration, frequent pressure cycling, overpressure or harsh environments generally need more frequent verification than those under stable conditions.
We also offer SANAS traceable calibrations complete with a certificate, valid for 1 year on our premises.
