How Vibration Causes Pressure Gauge Failures
A pressure gauge installed next to a pump, compressor, or heavy rotating equipment might look like a rugged, simple instrument from the outside. Inside the case, however, delicate mechanical components are constantly working to convert fluid pressure into a readable pointer position.
When a gauge is exposed to persistent, ongoing vibration, those precise components are subjected to aggressive movement they were not designed to withstand indefinitely.
The result is far more serious than an annoying, shaking needle. Persistent vibration can gradually turn a reliable pressure measurement point into an inaccurate—and eventually failed—instrument. In industrial environments where operators rely on these readings for process safety and equipment monitoring, a compromised gauge is a significant risk.
Why is Vibration So Damaging to Gauges?
A typical mechanical pressure gauge utilizes a pressure-sensitive element, most commonly a Bourdon tube. As process pressure enters the gauge, this curved tube changes shape slightly. That microscopic movement is transferred through a mechanical linkage and a highly geared mechanism to the pointer on the dial.
Under stable conditions, this mechanism operates smoothly. But mechanical vibration introduces continuous, violent, and unwanted movement.
Instead of the gears moving only in response to process pressure changes, the entire gauge casing shakes hundreds or thousands of times a minute. This forces the delicate internal gears to grind against one another, rapidly accelerating mechanical wear.
The 4 Stages of Internal Gauge Failure
1. Pointer Flutter and Loss of Readability
The earliest and most obvious symptom is a pointer that refuses to remain stable. Instead of displaying a crisp, clear pressure value, the needle blurs rapidly across a portion of the scale.
This creates an immediate operational hazard: the gauge becomes impossible to read accurately. Operators are forced to guess the approximate pressure. A vibrating pointer should never be dismissed as “normal plant behavior” simply because the gauge sits near machinery; it is an early warning sign of impending failure.
2. Internal Gear and Linkage Wear
The movement inside a mechanical gauge relies on small parts—pinion gears, pivots, and linkage pins—to translate the Bourdon tube’s flex into the pointer’s rotation.
Continuous vibration acts like sandpaper on these components. Severe vibration damage can even produce visible metallic dust or shavings inside the gauge window as the brass or stainless steel gears grind themselves down. The danger here is hidden: the gauge might still appear operational while severe internal deterioration has already taken place.

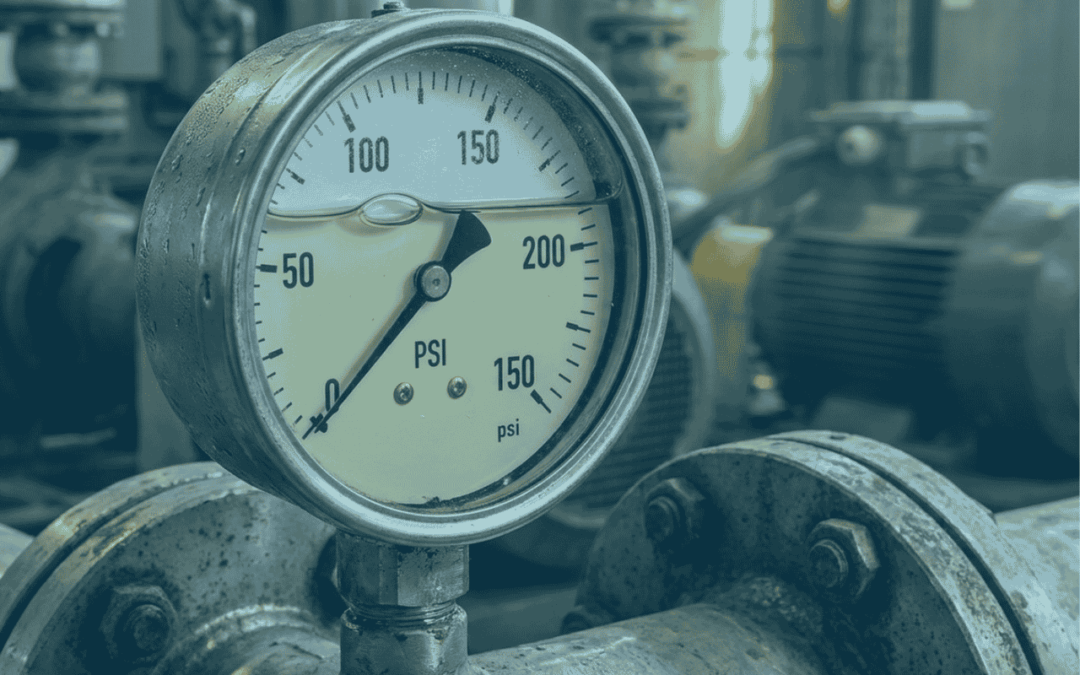

Liquid-filled industrial pressure gauge mounted on vibrating plant equipment to reduce pointer flutter and internal mechanical wear.
3. Calibration Drift and “Off-Zero” Readings
As mechanical wear progresses, it directly attacks the gauge’s accuracy. The instrument will begin displaying a pressure that differs from the actual process pressure.
A classic warning sign is a pointer that no longer returns to zero when the system is fully depressurised. Another is a gauge that repeatedly fails its tolerance checks during routine calibration. This type of drift is highly dangerous because the instrument produces believable, yet entirely false, readings.
4. Complete Mechanical Catastrophe
If vibration is left unchecked, the wear progresses beyond simple calibration drift. The pointer can vibrate loose and fall off the pin. The internal linkage can disconnect entirely, leaving the gauge dead. In extreme cases, the stress can even cause the Bourdon tube itself to rupture, leading to a process leak.
At this stage, recalibration is impossible. The damaged gauge must be replaced.
Vibration vs. Pressure Pulsation: Know the Difference
When diagnosing gauge problems, it is critical to understand the difference between mechanical vibration and pressure pulsation. The symptoms look similar, but the solutions are entirely different.
- Mechanical Vibration: Physical shaking transmitted to the outside of the gauge casing through machinery mounts, motor housings, or vibrating pipework.
- Pressure Pulsation: Rapid, violent fluctuations of the actual process fluid or gas inside the pipe (commonly caused by piston pumps or water hammer).
Pumps and compressors often create both conditions simultaneously. However, adding a pressure snubber will only fix fluid pulsation—it will do absolutely nothing to stop mechanical vibration from shaking your gauge to pieces.
How to Protect Pressure Gauges From Vibration
1. Upgrade to a Liquid-Filled Pressure Gauge
The most robust and proven solution for vibration-prone installations is the liquid-filled pressure gauge. The casing is filled with a dampening fluid—typically glycerine for standard temperatures, or silicone for extreme temperature variations.
This fluid acts as a shock absorber. It dampens the violent movement of the Bourdon tube, completely stabilises the pointer for easy reading, and continuously lubricates the internal gears to prevent friction wear.
2. Utilize Remote Mounting (Diaphragm Seals)
If a pump or compressor vibrates too violently for even a liquid-filled gauge to survive, the best solution is to remove the gauge from the machinery entirely.
By using a diaphragm seal connected to a flexible capillary tube, you can mount the gauge on a stable, vibration-free wall or panel nearby, while still accurately measuring the process pressure from the vibrating equipment.
3. Check Plant Installation and Pipe Supports
Sometimes the issue isn’t the gauge; it’s the infrastructure. Maintenance teams should ensure that surrounding pipework is properly bracketed and supported. Reducing vibration at its source benefits not only the pressure instruments but every valve and fitting attached to the system.
Do Vibration-Damaged Gauges Need Calibration?
Yes, absolutely. If a gauge has survived a high-vibration environment but its accuracy is now questionable, it must be verified. Calibration compares the indicated pressure against a known, highly accurate reference standard to identify measurement drift.
However, calibration is a verification tool, not a mechanical repair. If a gauge has a detached pointer or stripped gears, replacement is the only safe option.
For industrial plants in Sasolburg, the Vaal Triangle, and across South Africa, Blanes Pressure Solutions provides SANAS-traceable gauge calibration to ensure your measurements remain dependable, even in harsh environments.
Stop Replacing Gauges Without Finding the Cause
When the same pressure gauge position keeps failing month after month, the most useful question a maintenance manager can ask is not, “Which brand of gauge should we replace it with?”
The correct question is: “What is happening at this measuring point that keeps destroying our instruments?”
By identifying vibration early and implementing liquid-filled gauges, remote mounting, or improved bracketing, industrial plants can dramatically improve measurement reliability while slashing unnecessary replacement costs.
Frequently Asked Questions
Tap on a question below to reveal the answer.
1. Can vibration make a pressure gauge inaccurate?
Yes. Continuous mechanical vibration wears down the precise internal gears of a pressure gauge. This friction causes pointer instability, zero shift, and significant calibration drift, meaning the gauge will display incorrect readings.
2. What pressure gauge is best for a vibrating application?
A liquid-filled pressure gauge (typically filled with glycerine or silicone) is the industry standard for high-vibration environments. The fluid absorbs mechanical shock, stabilises the pointer for easy reading, and lubricates internal moving parts to prevent wear.
3. Why is my pressure gauge needle shaking?
A violently shaking needle—known as pointer flutter—is typically caused by mechanical vibration transmitted through the equipment, or rapid pressure pulsation (fluid surges) occurring inside the pipe. It is vital to diagnose which issue is present to apply the correct fix.
4. Can a damaged pressure gauge be recalibrated?
If the gauge has only suffered minor calibration drift without physical breakage, it can often be recalibrated. However, if vibration has caused severe mechanical wear, stripped gears, or a detached pointer, the instrument must be fully replaced.
5. How can plants reduce gauge failures caused by vibration?
Facilities can drastically reduce failures by utilizing liquid-filled gauges, securely bracketing pipework, relocating gauges away from vibration sources using capillary lines, and conducting regular SANAS-traceable calibrations to catch drift early.
