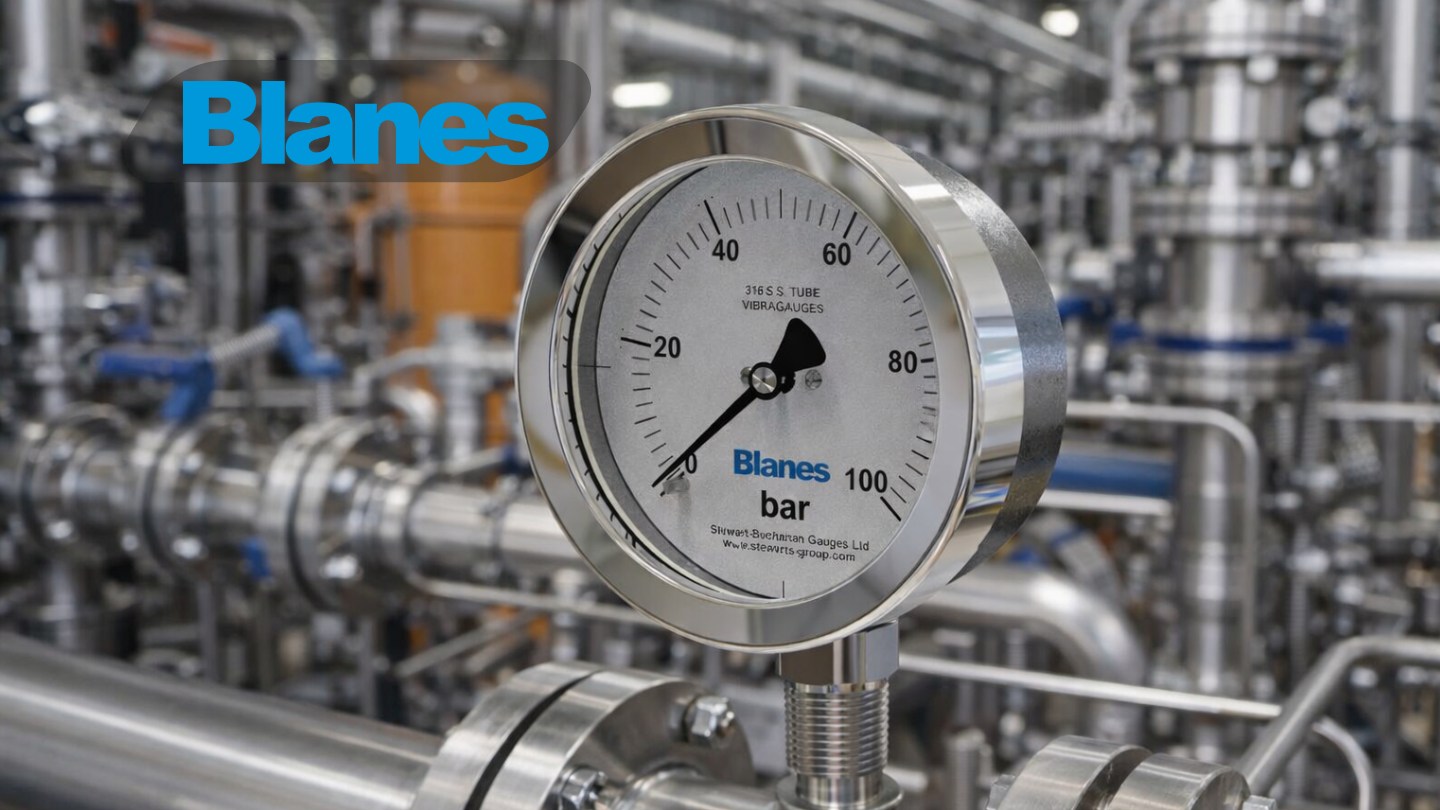

How to Choose Pressure Gauges
In industrial environments, pressure gauges are more than simple indicators. They are essential for safe operation, process consistency, and equipment protection. Choosing the correct gauge helps teams avoid costly downtime, inaccurate readings, and unnecessary replacements.
For many South African plants, the challenge is not finding a gauge — it is choosing one that matches real operating conditions. This guide breaks the process into practical steps so your team can make confident, informed decisions.
Why Correct Gauge Selection Matters
When a pressure gauge is incorrectly specified, the effects are often immediate:
-
Unstable or inaccurate readings
-
Frequent gauge failure
-
Increased maintenance costs
-
Poor process control
-
Higher safety risk
A well-selected gauge improves reliability and gives operators a dependable view of system pressure under normal and peak conditions.
1) Start with the Correct Pressure Range
Pressure range is one of the most important selection factors. A common mistake is selecting a range too close to normal operating pressure.
A practical rule in many applications is to keep normal operating pressure around the mid-section of the dial. This improves readability and reduces long-term stress on gauge internals. If your process has spikes or pulsation, you should allow additional range margin.
Tip:
Always account for startup surges, valve changes, and transient spikes — not only steady-state pressure.
2) Match Gauge Materials to Process Media
Not all gauges suit all media. Water, steam, oil, gas, and chemicals can each require different wetted-part materials.
Before selection, check compatibility of:
-
Bourdon tube material
-
Socket and process connection material
-
Seals and internal components
Incompatible materials can lead to corrosion, leakage, drift, and premature failure.
3) Check Accuracy Requirements
Different applications require different accuracy classes. A general utility line may tolerate standard accuracy, while critical process control points often require tighter performance.
Choose accuracy based on:
-
Process criticality
-
Quality control requirements
-
Compliance demands
-
Operational risk level
Over-specifying can increase cost unnecessarily, while under-specifying can reduce process confidence.
4) Plan for Vibration and Pulsation
In real plants, gauges are exposed to vibration from pumps, motors, compressors, and rotating equipment. Pulsation can also affect pointer stability and internal wear.
Where vibration or pulsation is present, consider:
-
Vibration-resistant gauge designs
-
Liquid-filled gauges
-
Snubbers or dampening accessories where required
-
Improved mounting support
This can significantly improve service life and readability.
5) Select the Right Dial Size and Visibility
If operators cannot easily read a gauge, decision-making slows and errors increase. Dial size should match viewing distance and installation position.
Evaluate:
-
Distance between gauge and operator
-
Lighting conditions
-
Viewing angle
-
Required reading precision
A slightly larger, clearer dial can improve operational response and safety.
6) Confirm Connection Type and Mounting
Connection and mounting errors can cause leaks, installation delays, or mechanical strain.
Verify:
-
Bottom entry or back entry
-
Thread type and thread size
-
Panel mount or direct mount
-
Space constraints around the installation point
Correct mounting decisions at procurement stage prevent avoidable rework onsite.
7) Consider Ambient and Process Temperature
Temperature affects gauge performance and lifespan. High heat, cold weather, and outdoor exposure can all influence reliability.
Review both:
-
Process temperature
-
Ambient temperature at installation location
If temperature conditions are demanding, specify a gauge suited to that environment from the start.
8) Use a Simple Pre-Purchase Checklist
Before final selection, confirm the following:
-
Pressure range includes normal and peak conditions
-
Media compatibility is verified
-
Accuracy class fits process needs
-
Vibration/pulsation conditions are addressed
-
Dial size is readable for operators
-
Connection and mounting are correct
-
Temperature suitability is confirmed
This checklist reduces failure risk and improves long-term value.
Common Selection Mistakes to Avoid
Many failures come from the same avoidable errors:
-
Choosing by price only
-
Ignoring pressure spikes
-
Not checking media compatibility
-
Using one “standard gauge” for all lines
-
Overlooking vibration and environmental conditions
A fit-for-purpose approach always outperforms a one-size-fits-all decision.
Final Thoughts
Choosing the right pressure gauge is a technical decision with direct operational impact. When your gauge matches the process correctly, you gain stable readings, better safety, improved uptime, and lower lifecycle cost.
Blanes Pressure Solutions supports industrial clients with practical guidance and reliable pressure instrumentation choices tailored to demanding South African conditions.
If your team needs assistance with selection, replacement, or application matching, expert support can save both time and cost before installation even begins.
